Using a Block Storage Volume with Plex Media Server

What is Plex?

Plex is a media server that allows you to store your media on a remote server and stream it to your devices. This guide shows how to attach a Block Storage Volume to an existing Linode in order to meet the demands of a growing media library.

Before You Begin

The examples in this guide assume the Plex Server is installed and running on a Linode. See how to Install Plex Media Server on Ubuntu 16.04 if it is not already installed. After installation, follow the steps in the Initial Setup section to create an SSH tunnel to your Linode and configure the Plex server.

This guide also assumes you already have a Plex account since Plex Media Player will require login.

Attach a Block Storage Volume to a Linode

1. Create a Block Storage Volume and attach it to the Linode running Plex Media Server. See View, Create, and Delete Block Storage Volumes for instructions on how to do this from the Linode Manager.

   To use the Linode CLI, create a new Volume and attach it to a Linode. The command below creates a 20GB Volume with the label plex-volume and attaches to a Linode labeled plex-linode. Adjust the command as needed:

   linode-cli volume create plex-volume -l plex-linode -s 20


2. Create a filesystem on the Block Storage Volume, then create a mountpoint per the instructions from the Linode Manager:



3. Check available disk space. Notice that there is some overhead with the Volume due to the file system:

   df -BG


   Filesystem     1G-blocks  Used Available Use% Mounted on
   /dev/root            20G    3G       17G  13% /
   devtmpfs              1G    0G        1G   0% /dev
   tmpfs                 1G    1G        1G   1% /dev/shm
   tmpfs                 1G    1G        1G   2% /run
   tmpfs                 1G    0G        1G   0% /run/lock
   tmpfs                 1G    0G        1G   0% /sys/fs/cgroup
   /dev/sdc             20G    1G       38G   1% /mnt/plex-volume
   tmpfs                 1G    0G        1G   0% /run/user/1000

4. If you want to use scp to transfer your media files directly from a client machine to the Volume (see next section), you will need to change the ownership of the mount point:

   sudo chown username:username /mnt/plex-volume


Configure a Plex Client

1. Install Plex Media Player on your device for streaming. Navigate to the Downloads section on the Plex website and follow the instructions for your device and operating system.

2. In the left menu, hover the mouse over Libraries. Click the + button:

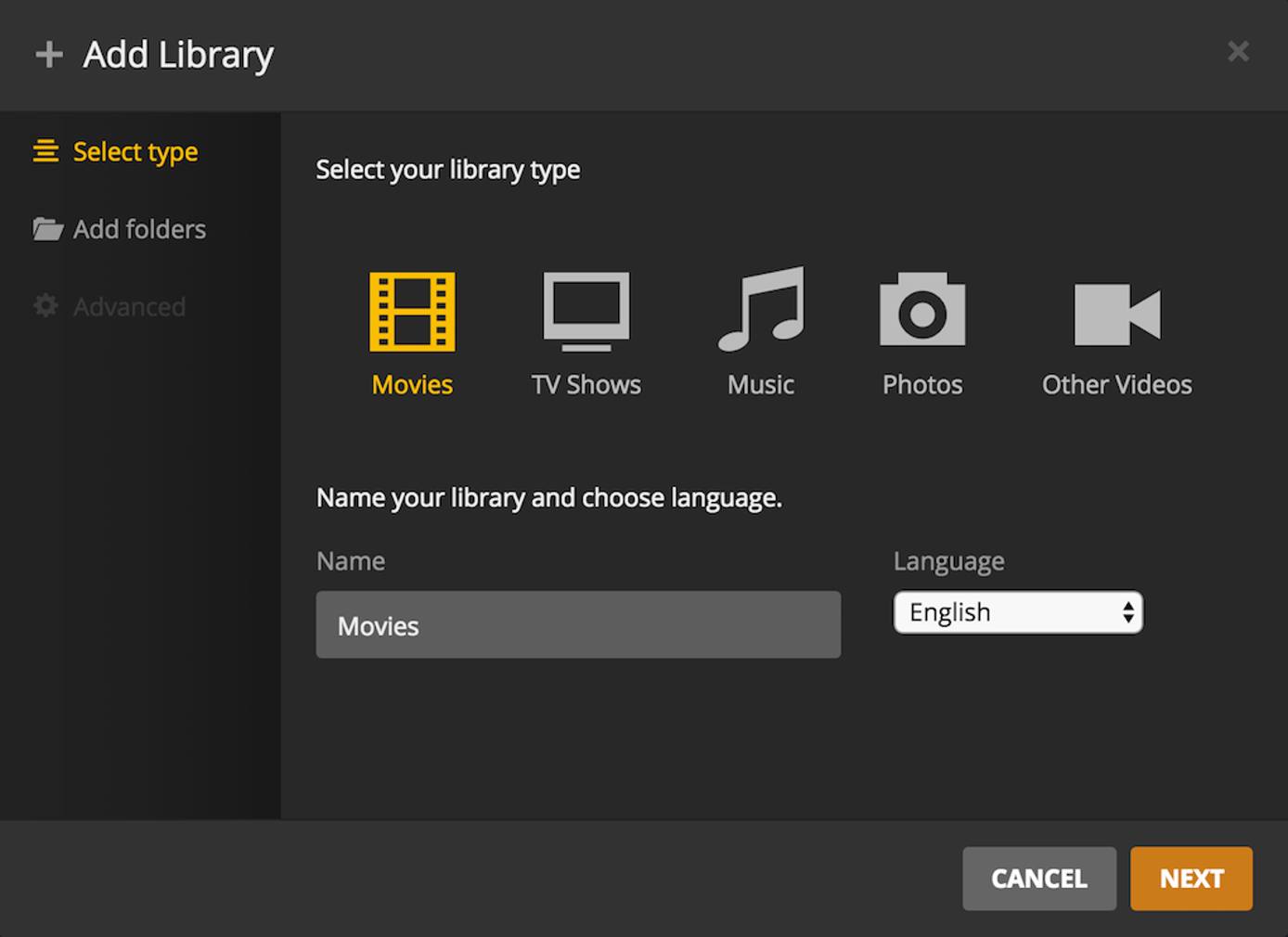

3. Select the library type. Movies is selected in this example. Then click next:

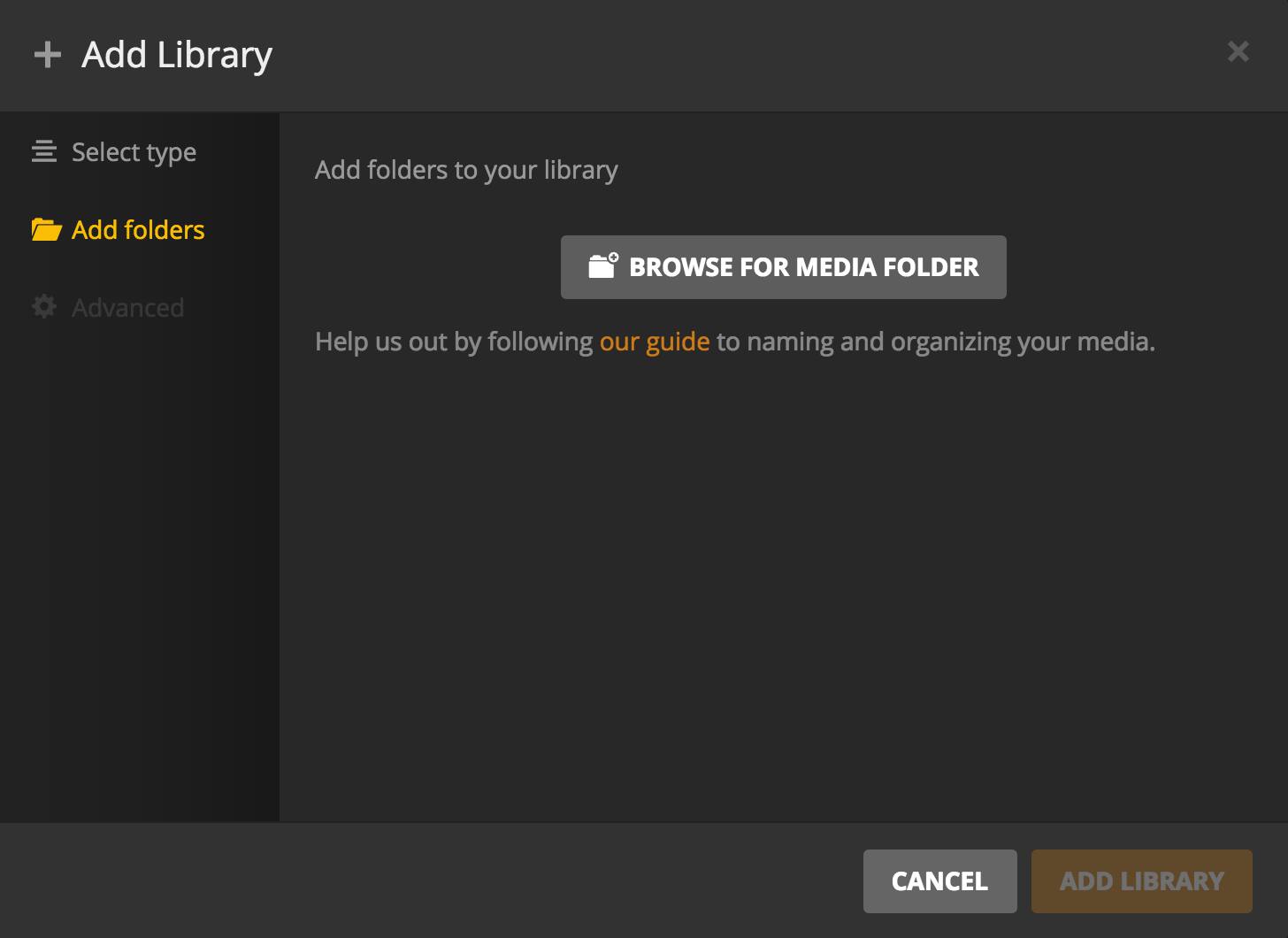

4. Click Browse for Media Folder.

5. A window will appear. Select the folder corresponding to the Block Storage Volume. In this example, the mountpoint is /mnt/plex-volume.

Transfer Media to the Volume via scp

Moving media to the Volume can be done with scp using the following syntax:

scp example_video.mp4 username@123.456.7.8:/mnt/plex-volume

Depending on the file size(s), this may take a few minutes.

Scan for New Media on the Volume

After new media is added to the Block Storage Volume, scan for files in the Plex Media Player. In the left menu, hover over the media type and expand the drop down menu. Select Scan Library Files.

The media should now be available through Plex Media Player.

More Information

You may wish to consult the following resources for additional information on this topic. While these are provided in the hope that they will be useful, please note that we cannot vouch for the accuracy or timeliness of externally hosted materials.

• Plex Media Server Documentation
